Brand Name : | JSS |

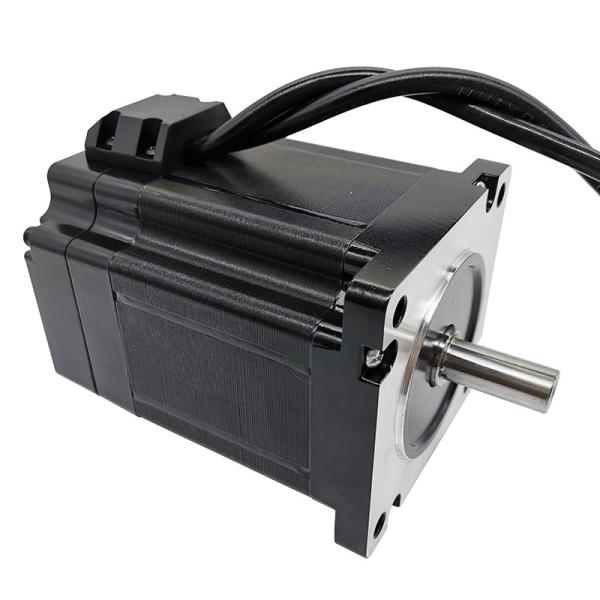

Model Number : | 86BL120-430 |
Certification : | CE,ROHS,ISO |
Price : | Negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 2000pcs/week |
Delivery Time : | 25days |
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
General specification:
Item | Specification |
Widing type | Star/Delta |
Hall effect angle | 120 degree electrice angle |
Shaft runout | 0.025mm |
Radial play | 0.02mm/50g |
End play | 0.08mm/50g |
Max radial force | 220N/20mm from the flange |
Max axial force | 60N |
Insulation class | Class B |
IP class | IP 40 |
Dielectric strength | 500VDC for one minute |
Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
Model | Rated Voltage(VDC) | Rated Current(A) | Rated Power(W) | Rated Torque(N.m) | Peak Torque(N.m) | Rated Speed(rpm) | Length(mm) | Mass(kg) |
86BL90-430 | 48 | 6 | 220 | 0.7 | 2.1 | 3000 | 90 | 1.8 |
86BL120-430 | 48 | 12 | 440 | 1.4 | 4.2 | 3000 | 117 | 2.4 |
86BL140-430 | 48 | 18 | 660 | 2.1 | 6.3 | 3000 | 144 | 3.8 |
86BL90-640 | 310 | 1.3 | 293 | 0.7 | 2.1 | 4000 | 90 | 1.8 |
86BL120-640 | 310 | 2.5 | 586 | 1.4 | 4.2 | 4000 | 117 | 2.4 |
86BL140-640 | 310 | 3.8 | 879 | 2.1 | 6.3 | 4000 | 144 | 3.8 |
Electrical Connection:
Lead No. | Lead Color | Lead Gauge | Function | Description |
1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Yellow | HALL A | SIGNAL OF HALL A | |
4 | Green | HALL B | SIGNAL OF HALL B | |
5 | Blue | UL3266/20AWG | HALL C | SIGNAL OF HALL C |
1 | Yellow | PHASE U | MOTOR PHASE U | |
2 | Green | PHASE V | MOTOR PHASE V | |
3 | Blue | PHASE W | MOTOR PHASE W |
Wiring diagram:
Dimensions:
(Unit=mm)
![]() |
