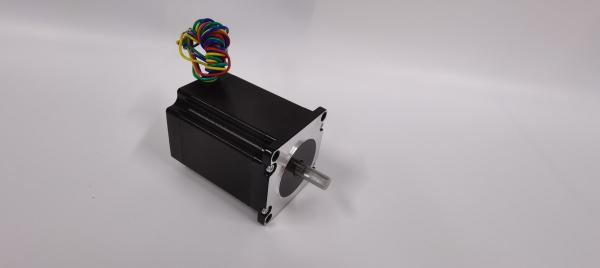

    High Torque Brushless Dc Motor 24V 125W 3000rpm 57mm Flange Square Shape

    Ask Lasest Price
    Brand Name : JSS
    Model Number : 57BL80-230
    Certification : CE,ROHS,ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000pcs/week
    Delivery Time : 25days
    • Product Details
    • Company Profile

    High Torque Brushless Dc Motor 24V 125W 3000rpm 57mm Flange Square Shape

    Industrial 57mm Brushless Dc Motor Flange 24V 3000rpm Square Shape 125W

    Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..

    Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.

    We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.


    General specification:

    ItemSpecification
    Widing typeStar/Delta
    Hall effect angle120 degree electrice angle
    Shaft runout0.025mm
    Radial play0.02mm/50g
    End play0.08mm/50g
    Max radial force75N/20mm from the flange
    Max axial force15N
    Insulation classClass B
    IP classIP 40
    Dielectric strength500VDC for one minute
    Insulation Resistance100MΩmin 500VDC

    Electrical Specification:


    ModelRated VoltageRated CurrentRated PowerRated TorquePeak TorqueRated SpeedLengthMass
    (VDC)(A)(W)(N.m)(N.m)(RPM)(mm)(kg)
    57BL60-230243.4620.20.63000600.65
    57BL80-230246.91250.41.23000810.85
    57BL100-2302410.41880.61.830001021.1


    Electrical Connection:

    Lead No.Lead ColorLead GaugeFunctionDescription
    1RedUL3266/28AWGVCC+5VDCSUPPLY VOLTAGE FOR HALL SENSORS
    2BlackGNDGROUND FOR HALL SENSORS
    3YellowHALL ASIGNAL OF HALL A
    4GreenHALL BSIGNAL OF HALL B
    5BlueUL3266/20AWGHALL CSIGNAL OF HALL C
    1YellowPHASE UMOTOR PHASE U
    2GreenPHASE VMOTOR PHASE V
    3BluePHASE WMOTOR PHASE W

    Wiring diagram:

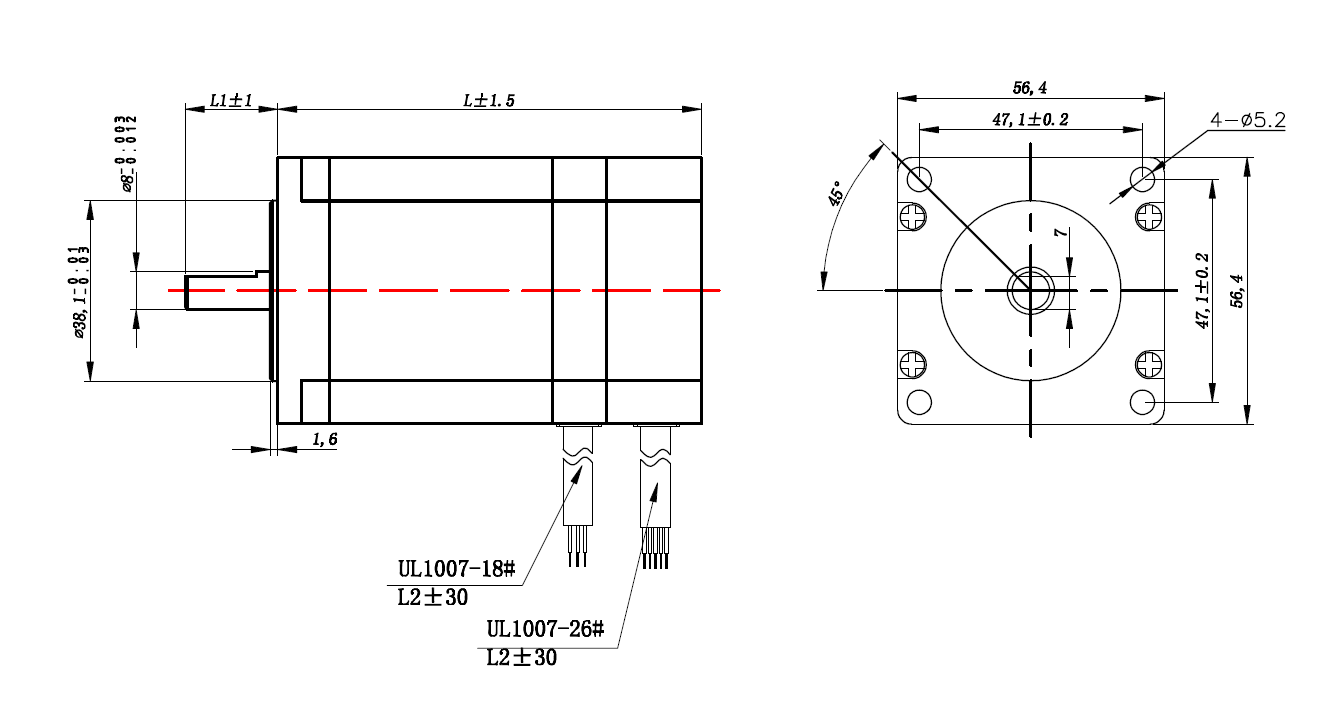

    Dimensions:

    (Unit=mm)
