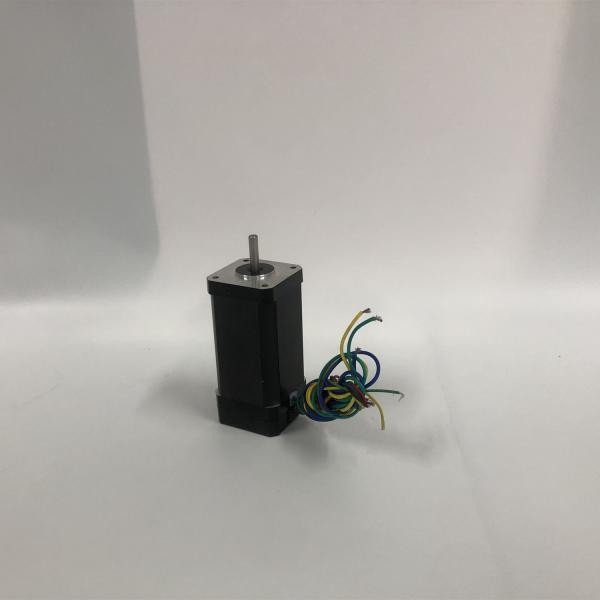

CE certificated 24V 125W 3000rpm 57mm round shape brushless dc motor used for electrical cars
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.02mm/450g |
| End play | 0.08mm/450g |
| Max radial force | 75N/20mm from the flange |
| Max axial force | 15N |
| Insulation class | Class B |
| IP class | IP 40 |
| Dielectric strength | 500VDC for one minute |
| Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Rated Voltage (VDC). | Rated Current (A) | Rated Power (W) | Rated Torque (N.m) | Peak torque (RPM) | Rated Speed (RPM) | Body Length (mm) | Mass (Kg) |
| JSS57BLY50-230 | 24 | 3.4 | 62 | 0.2 | 0.6 | 3000 | 54 | 0.35 |
| JSS57BLY70-230 | 24 | 6.9 | 125 | 0.4 | 1.2 | 3000 | 74 | 0.50 |
| JSS57BLY90-230 | 24 | 10.4 | 188 | 0.6 | 1.8 | 3000 | 94 | 0.65 |
| JSS57BLY110-230 | 24 | 13.9 | 251 | 0.8 | 2.4 | 3000 | 114 | 0.80 |
| JSS57BLY50-340 | 36 | 3.1 | 84 | 0.2 | 0.6 | 4000 | 54 | 0.35 |
| JSS57BLY70-340 | 36 | 6.2 | 167 | 0.4 | 1.2 | 4000 | 74 | 0.50 |
| JSS57BLY90-340 | 36 | 9.3 | 251 | 0.6 | 1.8 | 4000 | 94 | 0.65 |
| JSS57BLY110-340 | 36 | 12.4 | 335 | 0.8 | 2.4 | 4000 | 114 | 0.80 |
Dimensions:
(Unit=mm)
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/20AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
Produce process
Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Firstclass service:
customization and OEM is available.
Warranty: 12 months
