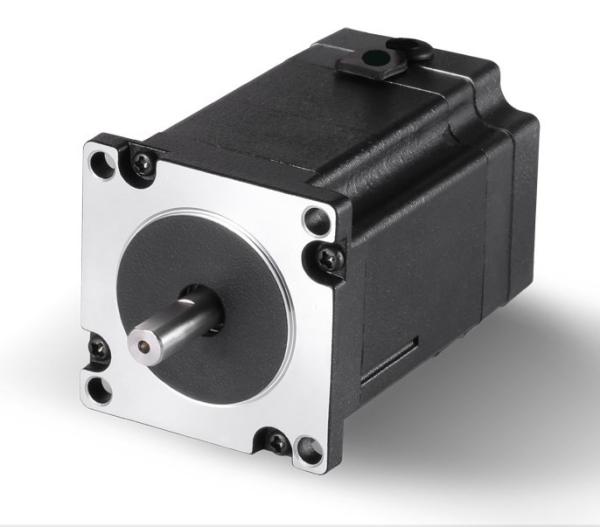

57mm Brushless Dc Motor 3000RPM 125W Power 0.4N.m 24VDC For Drone

Brushless dc motor features:

High speed

Long using life

Low cost

Low interference

High efficiency

Low noise

Energy Saving

Electrical Specification

• Manufacturer Part Number: 57BL80-230
• Phase: 3
• Poles: 4
• Rated Voltage: 24VDC
• Rated Speed: 3000RPM
• Rated Torque: 0.4Nm
• Peak Torque: 1.2N.m
• Rated Current: 6.9A
• Rated Power: 125W
• Insulation Class: Class B
• Insulation Resistance: 100MΩ Min @500VDC
• Dielectric Strength Test: 500VAC for 1 Minute
• Frame size: 57*57mm
• Body length: 80mm

Applications:

Brushless dc motor are widely used in textile machine, medical equipment, CNC, industrial automation, laboratory instrument, packing machine, drone etc.

42mm brushless dc motor:

Electrical Specification:

Electrical Connection:

Diagram:
