Changzhou Jinsanshi Mechatronics Co., Ltd
5 Years
| Ask Lasest Price | |
| Brand Name : | JSS |
| Model Number : | 57HS112-3004A |
| Certification : | CE,ROHS,ISO |
| Price : | USD 18-25 pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000 pcs month |
| Delivery Time : | 12-15 days |

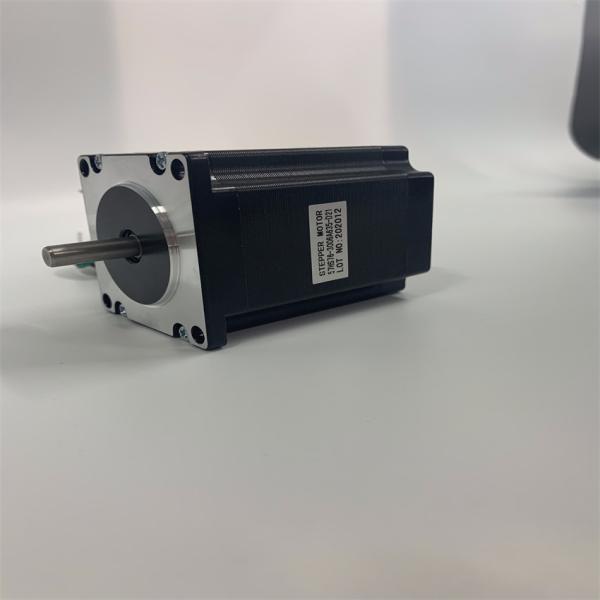

Robot Arm 3 Nm NEMA23 Hybrid Stepper Motor 425oz-In Torque Hybrid Step Motor
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers.
Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
Products Electrical specification:
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque(g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| 57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |
| Above only for representative products,products of special request can be made according to the customer request. | |||||||||||
Motor Dimensions:
Wiring Diagram:
|
|
