Changzhou Jinsanshi Mechatronics Co., Ltd
5 Years
| Ask Lasest Price | |
| Brand Name : | JSS |

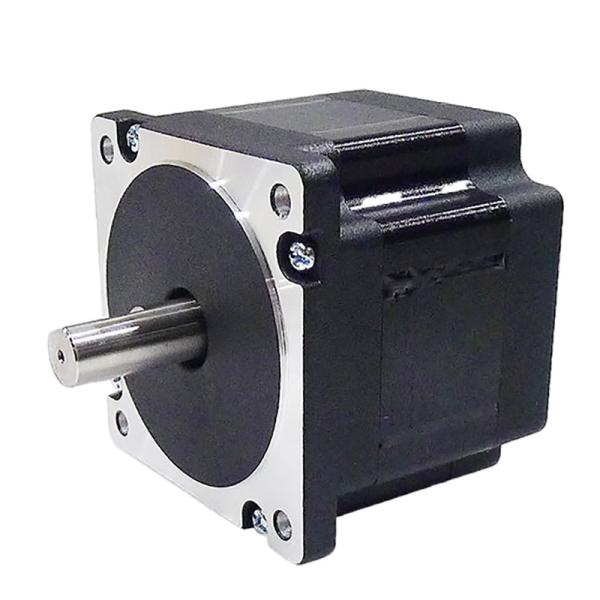

| Model Number : | 110BL165-620 |
| Certification : | CE,ROHS,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 2000pcs/day |
| Delivery Time : | 25days |
On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by JSS people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.02mm/450g |
| End play | 0.08mm/450g |
| Max radial force | 600N/20mm from the flange |
| Max axial force | 180N |
| Insulation class | Class B |
| IP class | IP 40 |
| Dielectric strength | 1500VDC for one minute |
| Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Phase No. | Rated Voltage (VDC) | Rated Speed (RPM) | Rated Current (A) | Rated Torque (N.m) | Peak Torque (N.M) | Rated Power (W) | Mass (Kg) | Body Length (mm) |
| 110BL140-620 | 3 | 310 | 2000 | 3.6 | 4 | 12 | 836 | 7.5 | 140 |
| 110BL165-620 | 3 | 310 | 2000 | 5.4 | 6 | 18 | 1255 | 9.5 | 165 |
| 110BL180-620 | 3 | 310 | 2000 | 7.2 | 8 | 24 | 1673 | 10.5 | 180 |
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/20AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
Wiring diagram:
Dimensions:
(Unit=mm)
|
|
