| Brand Name : | JSS-MOTOR |
| Model Number : | 86HSB156-6204 |
| Certification : | CE,ROHS,ISO |
| Price : | negotiate |
| Payment Terms : | T/T, Western Union，credit card, paypal |
| Supply Ability : | 30000pcs/month |
| Delivery Time : | 1-15days |

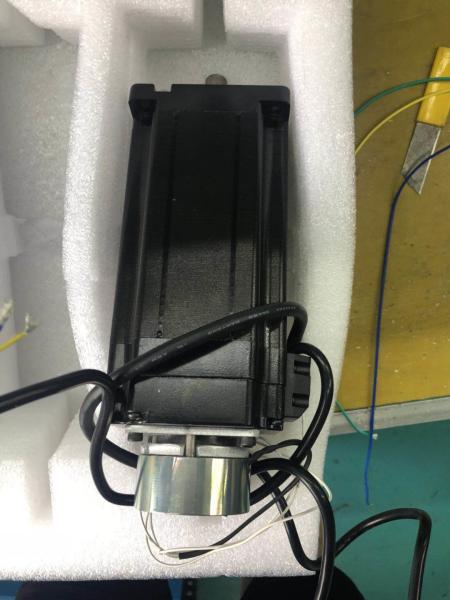

12nm Nema 34 Stepper Motor With Brake Stage Light Equipment Spring Brake 24V
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
Stepper motor with brake:
Brake parameter:
Brake Model | Input Voltage | Power | Diameter | Brake Length | Brake Torque | Suitable motor | Weight |
| 35 | 24V | 5.8W | 40mm | 26mm | 0.35N.m | 42HSB | 0.15KG |
| 50 | 24V | 4.8W | 50mm | 31.5mm | 1.5N.m | 57HSB | 0.33KG |
| 56 | 24V | 9.3W | 61mm | 37.5mm | 3.9N.m | 86HSB | 0.506KG |
Dimensions:
nema 34 motor parameter:
| Model No | Step Angle() | Rated Voltage(V) | Rated Current (A) | Phase Resistance() | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 86HS100-5004 | 1.8 | 2.5 | 5 | 0.5 | 4 | 68 | 2000 | 2100 | 100 | 4 | 3.2 |
| 86HS100-5008 | 1.8 | 2.5 | 5 | 0.5 | 4 | 65 | 2000 | 2100 | 100 | 8 | 3.2 |
| 86HS118-6004 | 1.8 | 3.6 | 6 | 0.6 | 6 | 85 | 2400 | 2700 | 118 | 4 | 3.7 |
| 86HS118-5608 | 1.8 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2400 | 2700 | 156 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 9 | 120 | 3600 | 4000 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 9 | 122 | 3600 | 4000 | 156 | 8 | 5.5 |
| Above only for representative products,products of special request can be made according to the customer request. | |||||||||||
|
|
