| Brand Name : | JSS-MOTOR |
| Model Number : | 28HSL32-0674 |
| Certification : | CE, ISO9001 |
| Price : | negotable |
| Payment Terms : | T/T, Western Union，credit card, paypal |
| Supply Ability : | 30000pcs/month |
| Delivery Time : | 1-15days |

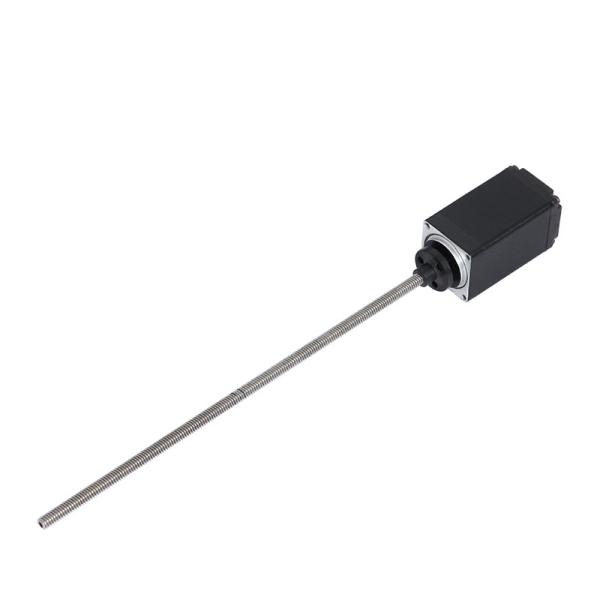

Linear Stepper Motor Nema 11 28mm Tr5*2 Current 0.67A 0.6kg.Cm
Size: 28*28mm
Step Angle: 1.8°
Phase voltage: 3.88VDC
Phase current: 0.67A
Phase resistance: 5.8Ω±%10
Phase inductance: 3.2mH±20%
Holding torque: 0.6kg.cm
Lead wires: 4
motor length: 32mm
Lead screw: Tr5*2
Nema 11 linear stepper motor
Lead screw dimensions:
| Diameter | lead distance(mm) | start | step length(mm) | Suitable motor type |
| Tr5 | 2 | 2 | 0.01 | 28HSL-E |
Stepper motor data sheet:
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(g) |
| 28HS28-0354 | 1.8 | 4.2 | 0.35 | 12 | 5.8 | 450 | 6 | 28 | 4 | 105 |
| 28HS28-0604 | 1.8 | 2.52 | 0.6 | 4.2 | 2.2 | 450 | 6 | 28 | 4 | 105 |
| 28HS32-0674 | 1.8 | 3.88 | 0.67 | 5.8 | 3.2 | 600 | 9 | 32 | 4 | 110 |
| 28HS45-0674 | 1.8 | 4.56 | 0.67 | 6.8 | 4.9 | 950 | 12 | 45 | 4 | 140 |
| 28HS51-0674 | 1.8 | 3.2 | 0.67 | 9.2 | 7.2 | 1200 | 18 | 51 | 4 | 200 |
Motor dimensions:
Applications:
Stepper motor are widely applied in engraving machine, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.
|
|
