Changzhou Jinsanshi Mechatronics Co., Ltd
5 Years
| Ask Lasest Price | |
| Brand Name : | JSS |
| Model Number : | GDZ120*103-7.5 ATC |
| Certification : | CE,ROHS,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000pcs/month |
| Delivery Time : | 15days |
ATC Spindle Motor Air Cooling 4.5kw 380V ISO30 Automatic Tool Change Spindle
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers.
Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
Application:
Cutting Machine,Router machine , Engarving Machine, Milling Machine,
Date sheet
| Model | Speed(R/min) | Voltage(V) | Power(Kw) | Current(A) | Frequency(HZ) | Lubrication | Joint of nose | Cooling type | Bearing type | Weight |
| GDZ120*103-4.5 ATC | 24000 | 380 | 4.5 | 11 | 800 | Grease | ISO30 | Air-cooling | 2*7008//2*7006 | 21 |

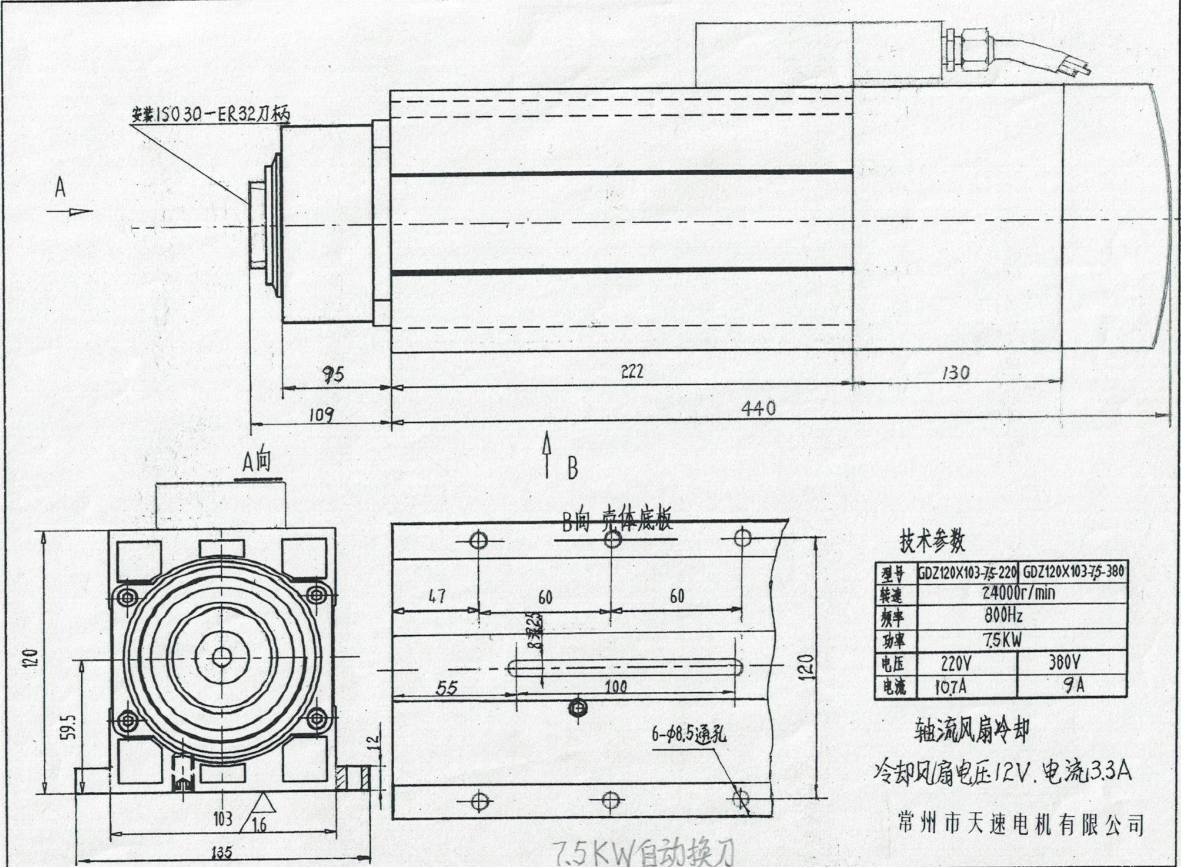

Drawing
|
|
