57*76MM Stepper Motor With Brake Stage Light Equipment Spring Brake
24V Stepping Motor
Our products are widely applied in engraving machine, cutting
plotter, textile machine, 3D printer, medical instruments, stage
light equipment, robot, CNC, music fountain, and other industrial
automatic equipment..
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
Stepper motor with brake:
Brake parameter:
Brake Model | Input Voltage | Power | Diameter | Brake Length | Brake Torque | Suitable motor | Weight |
| 35 | 24V | 5.8W | 40mm | 26mm | 0.35N.m | 42HSB | 0.15KG |
| 50 | 24V | 4.8W | 50mm | 31.5mm | 1.5N.m | 57HSB | 0.33KG |
| 56 | 24V | 9.3W | 61mm | 37.5mm | 3.9N.m | 86HSB | 0.506KG |

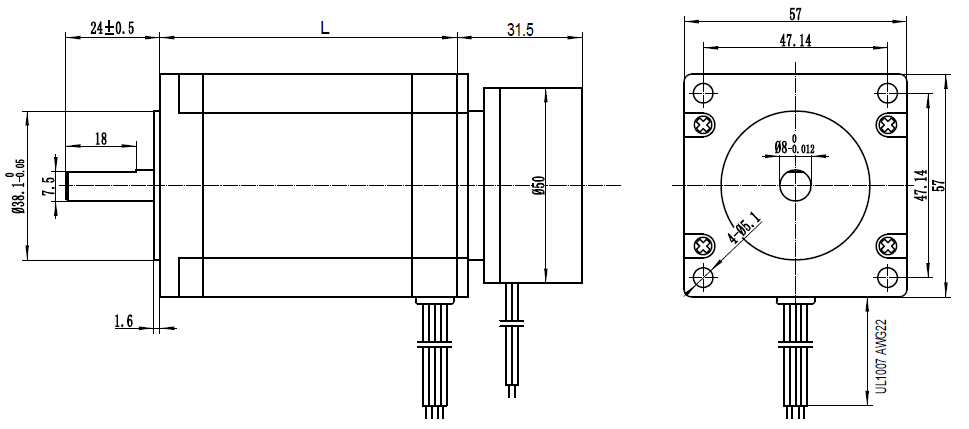

Dimensions:
nema 23 motor parameter:
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque(g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 680 | 480 | 76 | 4 | 1 |
| 57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 680 | 480 | 76 | 4 | 1 |
| 57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 680 | 480 | 76 | 4 | 1 |
| 57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 700 | 510 | 82 | 4 | 1.2 |
| 57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 700 | 510 | 82 | 4 | 1.2 |
| 57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 1000 | 680 | 100 | 4 | 1.4 |
| 57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| 57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |
| Above only for representative products,products of special request can be made according to the customer request. | |||||||||||
|
|
