Brushless Dc Motor Driver 12-56VDC BLD-300 Suitful Below 48V 440W Dc Motor
Features:
1, acceleration/deceleration time setting
2, motor pole number setting
3, max current output setting
4, open/closed loop control
5, motor torque holding
6, restart
7, carious aralam indications
8, internal potentiometer and RV speed control
9, external potentiometer speed control
10, external analog singal speed regulation
11, pulse frequency speed control
Electrical parameters:
| Parameter | Min | Rated | Max | Unit |
| Motor Hall angle | 120°/240° | |||
| DC input voltage | 12 | 48 | 56 | V |
| Driving current output | - | - | 15 | A |
| Applicable motor speed | - | - | 20000 | rpm |
| Hall signal voltage | - | - | 5 | V |
| Hall signal current | 12 | mA | ||
| External potentiometer | 10k | Ω | ||
Wiring diagram:
| Signal | Terminal | Content |
| Output signal | ALM | The motor or driver controls the fault signal output signal, which
is normally 5V, and the level is 0V when the fault occurs. |
| SPEED | Corresponding to the operating speed of the motor, the
corresponding pulse frequency is output. With SPEED-OUT, the speed
of the motor can be calculated. The calculation formula is: N(rpm)=(F/P)*60/3 F:Output pulse frequency(HZ);P:Motor grade logarithm；N:Motor speed For example: motor 4 pole F=1sec/2ms=500Hz N(rpm)=(500/4)*60/3=2500 | |
| Control signal | BRK | When the BRK and COM terminals are disconnected or the high level
is input, the motor brake stops. When the motor is shorted or low level, the motor runs. |
| EN | When the EN terminal is disconnected from the COM terminal or the high-level input is input, the motor stops slowly. When the short-circuit or low-level input is used, the motor runs. | |
| F/R | When the F/R terminal is short-circuited with the COM terminal or the high-level input,the motor rotates forward, and when the short-circuit or low-level input is used, the motor reverses. | |
| COM | Public port (OV reference level) | |
| SV | ①external speed potentiometer ②external analog signal input ③ pulse frequency input | |
| VCC | External potentiometer interface | |
| Hall signal | REF+ | DC brushless motor Hall signal power supply. |
| HU | DC brushless motor Hall signal HU. | |
| HV | DC brushless motor Hall signal HV. | |
| HW | DC brushless motor Hall signal HW. | |
| REF- | The DC brushless motor Hall signal is grounded. | |
| Motor connection | U | DC brushless motor U phase. |
| V | DC brushless motor V phase. | |
| W | DC brushless motor W phase. | |
| Power connection | DC- | DC power input to the negative pole. |
| DC+ | The DC power input is positive. (Voltage range DC24V-DC52V) |

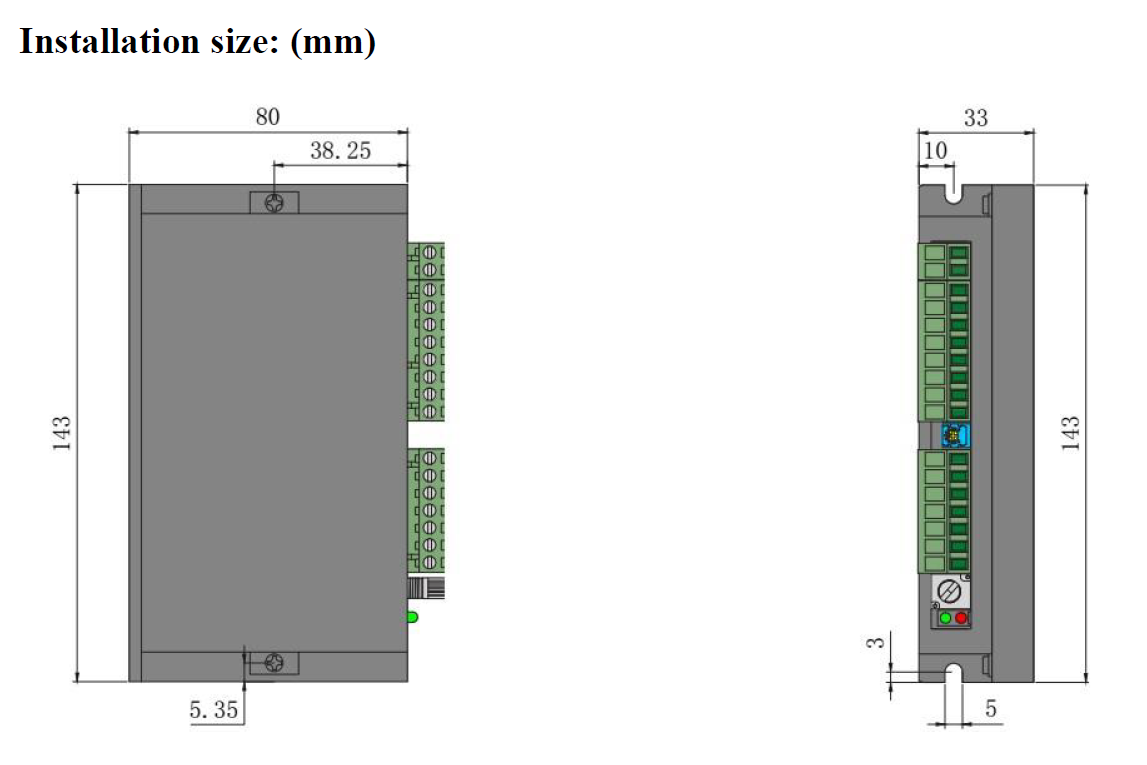

Dimensions:
|
|
