750W Brushless Dc Motor Driver MAX 25A 20000RPM Open/Closed Loop Control
Brushless dc driver:
Features:
BLD-750 Suitable for three-phase DC with power of 750W and below brushless Motor. This product is designed with advanced DSP control technology, with high torque, low noise and low vibration.Quick start and stop features. At the same time, it has PID current and speed closed loop control, over voltage, under voltage, over current, over temperature, etc. Protective function. Realized manual speed adjustment and upper computer analog voltage speed adjustment, upper computer pulse frequency speed the perfect unity of adjustment.
Electrical parameters:
| Parameter | Min | Rated | Max | Unit |
| Motor Hall angle | 120°/240° | |||
| DC input voltage | 18 | 48 | 52 | V |
| Driving current output | - | - | 25 | A |
| Applicable motor speed | - | - | 20000 | rpm |
| Hall signal voltage | - | - | 5 | V |
| Hall signal current | 20 | mA | ||
| External potentiometer | 10k | Ω | ||
| Signal | Terminal | Content |
| Output signal | ALM | The motor or driver controls the fault signal output signal, which
is normally 5V, and the level is 0V when the fault occurs. |
| SPEED | Corresponding to the operating speed of the motor, the
corresponding pulse frequency is output. With SPEED-OUT, the speed
of the motor can be calculated. The calculation formula is: N(rpm)=(F/P)*60/3 F:Output pulse frequency(HZ);P:Motor grade logarithm；N:Motor speed For example: motor 4 pole F=1sec/2ms=500Hz N(rpm)=(500/4)*60/3=2500 | |
| Control signal | BRK | When the BRK and COM terminals are disconnected or the high level
is input, the motor brake stops. When the motor is shorted or low level, the motor runs. |
| EN | When the EN terminal is disconnected from the COM terminal or the high-level input is input, the motor stops slowly. When the short-circuit or low-level input is used, the motor runs. | |
| F/R | When the F/R terminal is short-circuited with the COM terminal or the high-level input,the motor rotates forward, and when the short-circuit or low-level input is used, the motor reverses. | |
| COM | Public port (OV reference level) | |
| SV | ①external speed potentiometer ②external analog signal input ③ pulse frequency input | |
| VCC | External potentiometer interface | |
| Hall signal | REF+ | DC brushless motor Hall signal power supply. |
| HU | DC brushless motor Hall signal HU. | |
| HV | DC brushless motor Hall signal HV. | |
| HW | DC brushless motor Hall signal HW. | |
| REF- | The DC brushless motor Hall signal is grounded. | |
| Motor connection | U | DC brushless motor U phase. |
| V | DC brushless motor V phase. | |
| W | DC brushless motor W phase. | |
| Power connection | DC- | DC power input to the negative pole. |
| DC+ | The DC power input is positive. (Voltage range DC24V-DC52V) |

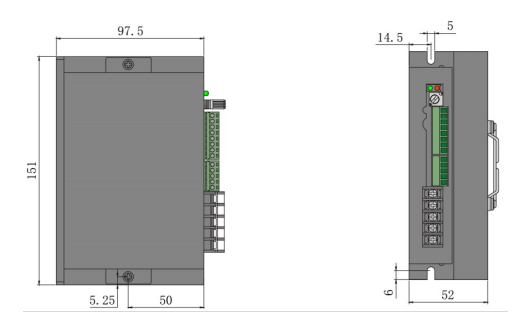

Dimensions:
|
|
