Changzhou Jinsanshi Mechatronics Co., Ltd
5 Years
| Ask Lasest Price | |
| Brand Name : | JSS |
| Model Number : | GDZ65F-800 |
| Certification : | CE,ROHS,ISO |
| Price : | negotiate |
| Payment Terms : | T/T,Paypal,credit card, Western Union |
| Supply Ability : | 2000pcs per weeks |
| Delivery Time : | 20 work days |

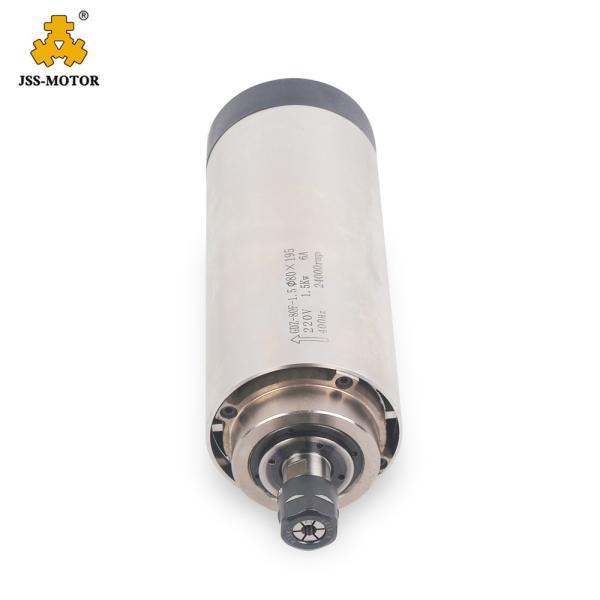

cnc router air cooler spindle motor round shape 800w 18000rpm spindle
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life
Product Features
speed:18000rpm
power :800w
Dia:65mm
The datasheet of our water cooling spindle motor
| TYPE | speed (rpm) | power(kw) | voltage (V) | current (A) | frequency (HZ) | dimension | collect | product size(mm) | Weight(kg) | |||||
| L4 | L5 | L6 | L1 | L2 | L3 | |||||||||
| round | GDZ65F-800 | 24000 | 0.8 | 220 | 4 | 400 | 65 | ER11 | 182.5 | 15 | 28.5 | 3 | ||
| GDZ80F-1.5 | 24000 | 1.5 | 220 | 5 | 400 | 80 | ER11 | 193.5 | 9 | 26 | 4.4 | |||
| GDZ80F-2.2 | 24000 | 2.2 | 220 | 8 | 400 | 80 | ER16 | 193.5 | 19.5 | 31.5 | 4.5 | |||
| GDZ80F-2.2 | 24000 | 2.2 | 220 | 8 | 400 | 80 | ER20 | 193.5 | 19.5 | 31.5 | 4.5 | |||
Suitful pairs:
|
|
