Nema 34 Hybrid Easy Servo Closed Loop Stepper Motor And Driver

Hybrid Easy Servo System (closed loop stepper motor and driver).

Lower cost than AC servo system, but higher performance than stepper motor.

Never lose steps, more accuracy.

The best Choice for engraving machine, cnc router, plasma cutting machine and other automatic equipment.

Closed Loop Stepper Motor and Driver:

Features:

1. Position error correction and never lose steps

2. Quick response and perfect acceleration, High torque at high speed

3. Automatic current adjustment based on load, lower temperature rising

4. Over-current, over-voltage and position ultra difference protection function

5. Pulses response frequency can reach 200KHZ

6. 16 kinds microsteps choice, highest 51200microsteps/rev.

7. Drive nema 34 series 4.5N.m, 8N.m, 12N.m closed loop stepper motor

8. Voltage range: AC20V~80V, DC30V-110V

9. Parameter adjustable with RS232 port

Electrical Parameters:

Motor Dimension:

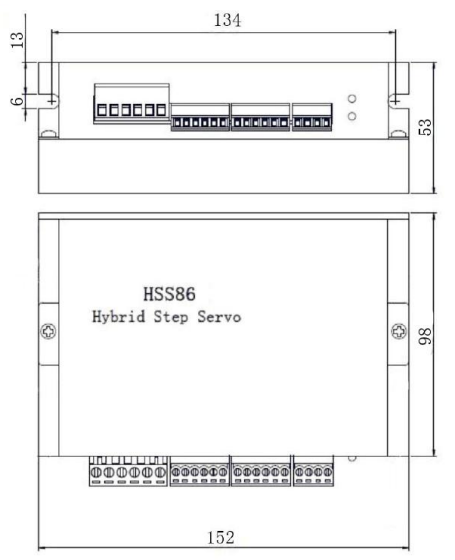

Driver installation size: (mm)

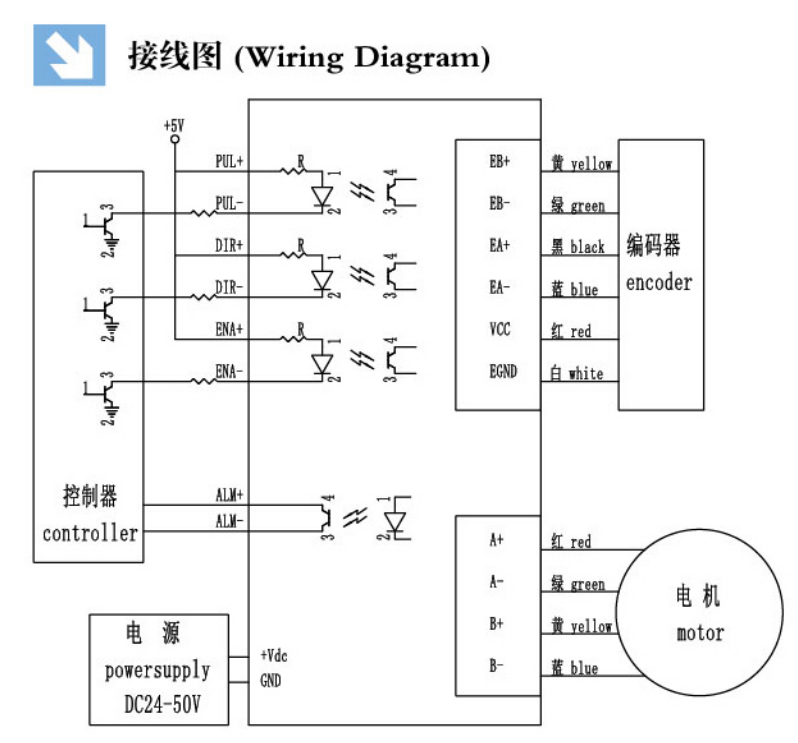

Driver Wring Diagram:

Microstep selection:

Torque/Frequency Curve:

Applications:

Stepper motor are widely applied in engraving machine, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.
