12N.M 3axis Cnc Kit High Torque Nema 34 Closed Loop Stepper Motor

This CNC kit includes 3pcs 12N.m closed loop motor and 3pcs closed loop driver and 3pcs encoder cable.

Closed loop stepper motor Electrical Parameters:

Closed Loop Stepper Driver:

Features:

1. Position error correction and never lose steps

2. Quick response and perfect acceleration, High torque at high speed

3. Automatic current adjustment based on load, lower temperature rising

4. Over-current, over-voltage and position ultra difference protection function

5. Pulses response frequency can reach 200KHZ

6. 16 kinds microsteps choice, highest 51200microsteps/rev.

7. Drive nema 34 series 4.5N.m, 8N.m, 12N.m closed loop stepper motor

8. Voltage range: AC20V~80V, DC30V-110V

9. Parameter adjustable with RS232 port

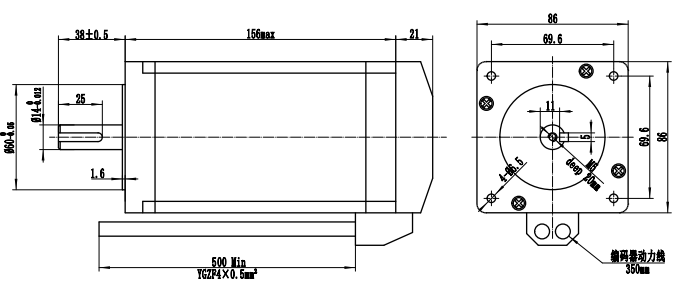

Motor Dimension:

Driver installation size: (mm)

Driver Wring Diagram:

Microstep selection:

Torque/Frequency Curve:

Applications:

Stepper motor are widely applied in engraving machine, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.
