high quality 86mm nema 34 stepper mtor and stepper driver closed loop step sero motor 4.5N.m

Model: 86HSE4N-BC38

Holding torque: 4.5N.m

Size: nema 34

Encoder resolution: 1000 lines

Suitable driver: HSS86

Closed Loop Stepper Motor and Driver:

Features:

1. Position error correction and never lose steps

2. Quick response and perfect acceleration, High torque at high speed

3. Automatic current adjustment based on load, lower temperature rising

4. Over-current, over-voltage and position ultra difference protection function

5. Pulses response frequency can reach 200KHZ

6. 16 kinds microsteps choice, highest 51200microsteps/rev.

7. Drive nema 34 series 4.5N.m, 8N.m, 12N.m closed loop stepper motor

8. Voltage range: AC20V~80V, DC30V-110V

9. Parameter adjustable with RS232 port

Electrical Parameters:

Motor Dimension:

Driver installation size: (mm)

Driver Wring Diagram:

Microstep selection:

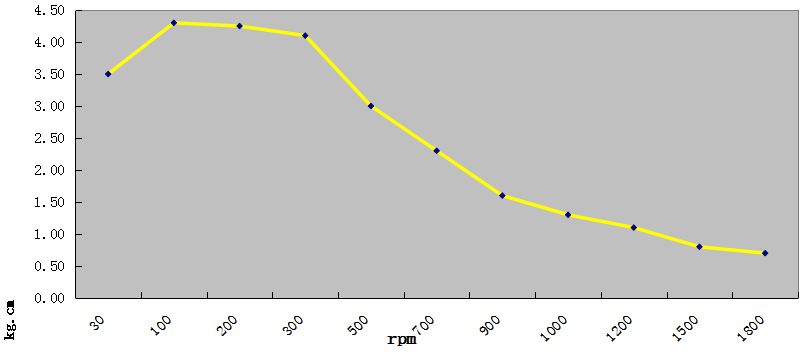

Torque/Frequency Curve:

Applications:

Stepper motor are widely applied in engraving machine, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.

      Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.

      Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..

Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.

We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.

     We have passed ISO9001:2015, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.
