| Brand Name : | JSS |
| Model Number : | JSS57P3N |
| Certification : | CE,ROHS,ISO |
| Price : | USD$38~58 |
| Payment Terms : | T/T, Western Union, paypal |
| Supply Ability : | 2000pcs/weeks |
| Delivery Time : | 15days |
Motor Eelctrical Parameters:
| Mode | Step angle | Current (A) | Resistance (Ω±10%) | Inductance | Holding | Motor | Encoder | Weight(kg) |
| (mH±20%) | torque(N.m) | length(mm) | Resolution(PPR) | |||||
| 57HSE1N-D25 | 1.8° | 4.2 | 0.4 | 1.2 | 1.2 | 88 | 1000 | 0.9 |
| 57HSE2N-D25 | 1.8° | 4.2 | 0.5 | 1.8 | 2 | 108 | 1000 | 1.3 |
| 57HSE3N-D25 | 1.8° | 4 | 0.9 | 4 | 3 | 144 | 1000 | 1.9 |

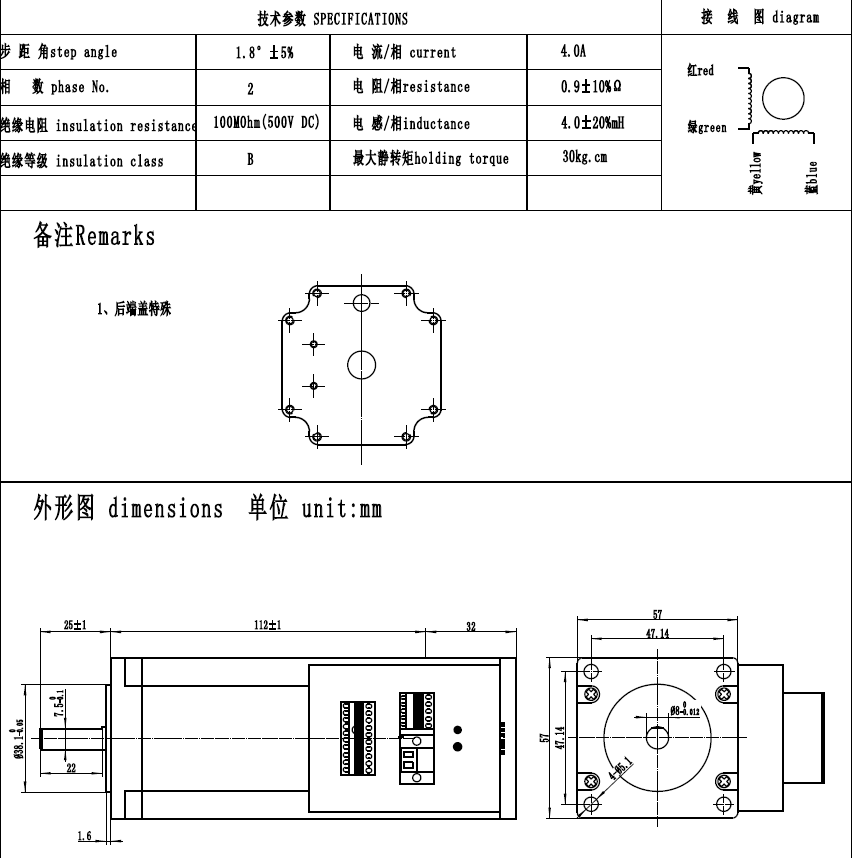

Motor dimension:mm
Torque/Frequency Curve
Features:
1. Position error correction and never lose steps
2. Quick response and perfect acceleration, High torque at high
speed
3. Automatic current adjustment based on load, lower temperature
rising
4. Over-current, over-voltage and position ultra difference
protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200microsteps/rev
7. Support modbus RTU protocol on RS232, position and speed control
controlled by communication;
8. Drive nema 23 series 2N.m integrated closed loop stepper motor
9. Voltage range: DC24V~48V
Microstep selection:
| Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
| Default(400) | on | on | on | on |
| 800 | off | on | on | on |
| 1600 | on | off | on | on |
| 3200 | off | off | on | on |
| 6400 | on | on | off | on |
| 12800 | off | on | off | on |
| 25600 | on | off | off | on |
| 51200 | off | off | off | on |
| 1000 | on | on | on | off |
| 2000 | off | on | on | off |
| 4000 | on | off | on | off |
| 5000 | off | off | on | off |
| 8000 | on | on | off | off |
| 10000 | off | on | off | off |
| 20000 | on | off | off | off |
| 40000 | off | off | off | off |
Wiring Diagram:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
|
|
