Changzhou Jinsanshi Mechatronics Co., Ltd
5 Years
| Ask Lasest Price | |
| Brand Name : | JSS-MOTOR |
| Model Number : | 57HM76-3004 |
| Certification : | CE, RoHS, ISO9001 |
| Price : | negotable |
| Payment Terms : | T/T, Western Union，credit card, paypal |
| Supply Ability : | 50000pcs/month |
| Delivery Time : | 1-15days |
Accurate Stepper Motor Nema 23 0.9 Dstep Angle CNC Mill Lathe
Router Robot
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou
city, Jiangsu province, China. We are a comprehensive company which
specializes in producing and researching motors and drivers. Our
main products include hybrid step motor, and step driver, step
servo motor and driver, integrated step servo motor, linear stepper
motor, geared stepper motor, stepper motor with brake, brushless dc
motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting
plotter, textile machine, 3D printer, medical instruments, stage
light equipment, robot, CNC, music fountain, and other industrial
automatic equipment..
Our products are exported to all over the world, including Europe,
South America, North America, Africa, Southeast Asia, etc.
We can solve the actual using problems for customers. Our products
are highly commended by customers because of its easy operation,
long using life, stable performance.
NEMA 23 2-phase 0.9° hybrid stepper motor
Specification:
| Step Angel | 1.8° |
| Temperature Rise | 80℃ |
| Ambient Temperature | -20℃ Max ~ +50℃ |
| Isulation Resistence | 100MΩ min., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02 Max (450g-load) |
| Shaft Axial Play | 0.08 Max (450g-load) |
| Max. Radial Force | 75N (20mm from the flange) |
| Max. Axial Force | 15N |
Electrical Specifications:
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque(g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 57HM56-2006 | 0.9 | 3.3 | 2 | 1.65 | 4.5 | 10 | 400 | 300 | 56 | 6 | 0.7 |
| 57HM56-3004 | 0.9 | 2.7 | 3 | 0.9 | 3.5 | 10 | 400 | 300 | 56 | 4 | 0.7 |
| 56HM56-4204 | 0.9 | 1.7 | 4.2 | 0.4 | 1.5 | 10.5 | 400 | 300 | 56 | 4 | 0.7 |
| 57HM64-1004 | 0.9 | 7.8 | 1 | 7.8 | 29.2 | 12 | 500 | 380 | 64 | 4 | 0.85 |
| 57HM64-4204 | 0.9 | 1.8 | 4.2 | 0.43 | 1.6 | 13 | 500 | 380 | 64 | 4 | 0.85 |
| 57HM76-1006 | 0.9 | 8.6 | 1 | 8.6 | 23.2 | 13.5 | 680 | 440 | 76 | 6 | 1.05 |
| 57HM76-2804 | 0.9 | 3.4 | 2.8 | 1.2 | 5.8 | 18 | 680 | 440 | 76 | 4 | 1.05 |
| 57HM76-3004 | 0.9 | 3.6 | 3 | 1.2 | 4.5 | 15 | 680 | 440 | 76 | 4 | 1.05 |
| 57HM76-4204 | 0.9 | 2.1 | 4.2 | 0.51 | 2.4 | 18 | 680 | 440 | 76 | 4 | 1.05 |

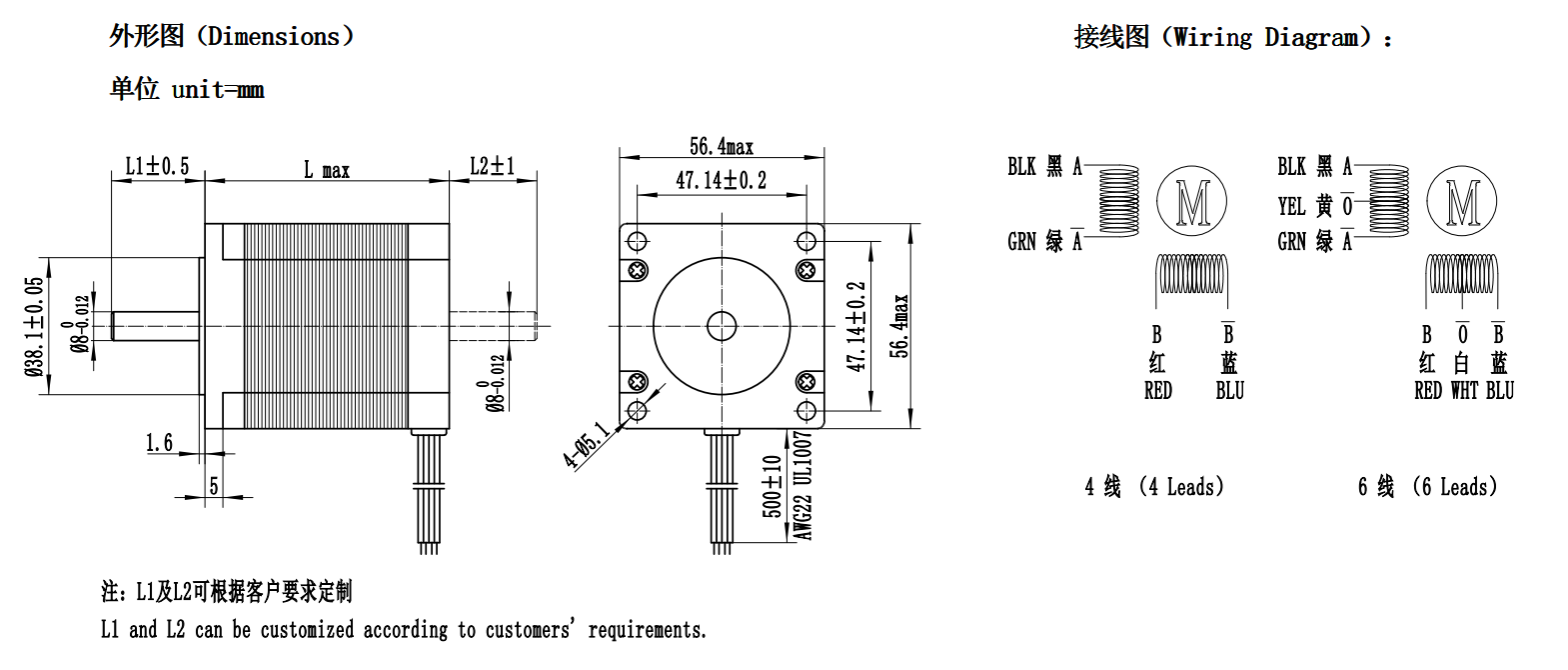

Dimensions:
Applications:
Stepper motor are widely applied in engraving machine, textile
machine, 3D printer, medical instruments, stage light equipment,
robot, CNC, music fountain, and other industrial automatic
equipment.
|
|
