| Brand Name : | JSS-MOTOR |
| Model Number : | 86HC127-5206 |
| Certification : | CE, RoHS, ISO9001 |
| Price : | negotable |
| Payment Terms : | T/T, Western Union，credit card, paypal |
| Supply Ability : | 50000pcs/month |
| Delivery Time : | 1-15days |
NEMA 34 3-Phase 1.2 Degree Stepper Motor 5.2N.M 5.2amps Cnc Router Milling Machine
nema 34 3-phase series stepper motor
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque(g.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 86HC97-2006 | 1.2 | 10.8 | 2 | 5.4 | 23 | 43 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC97-5806 | 1.2 | 5.2 | 5.8 | 0.9 | 3.2 | 46 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC97-5206 | 1.2 | 6.2 | 5.2 | 1.2 | 5.2 | 45 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC127-2256 | 1.2 | 20.3 | 2.25 | 9 | 41 | 65 | 3000 | 2700 | 127 | 6 | 4.3 |
| 86HC127-5206 | 1.2 | 14.3 | 5.2 | 2.75 | 13.7 | 67 | 3000 | 2700 | 127 | 6 | 4.3 |
| 86HC150-5006 | 1.2 | 7.5 | 5 | 1.5 | 3 | 70 | 3600 | 4700 | 150 | 6 | 4.6 |
| Items | Spec. |
| Step Angle | 1.2° |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80°C Max |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
Features:
Low noise
Low heating
Low virbration
High torque
High quality raw material
Long using life

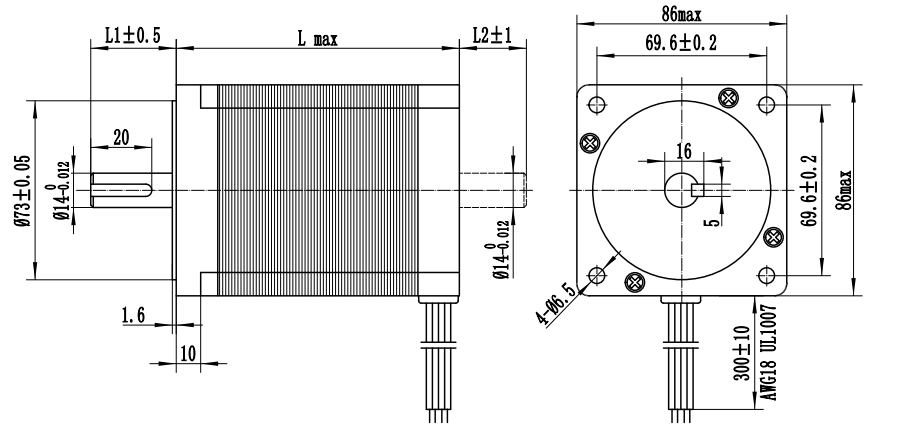

Dimensions:
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.
2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C
3. We can provide you professional technical support. And our products quality gurantee is 18 months.
4. We accept products customize.
