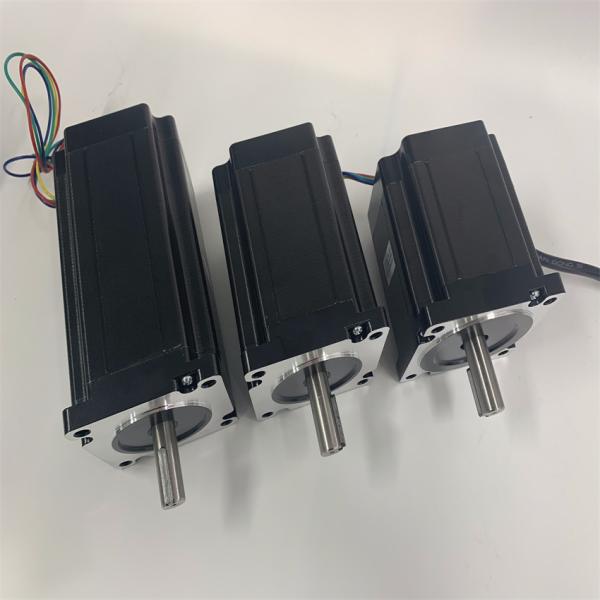

86HS118-6004 Nema 34 86HS118 8.5Nm Stepper Motor Hybrid Stepper Motor
General specifiation
| Step Angle | 1.8° |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃ Max∼+50℃ |
| Insulation Resistance | 100M ΩMin.,500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Asial Force | 60N |
Electrical Specification:
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 86HS65-3004 | 1.8 | 3.3 | 3 | 1.1 | 6.5 | 28 | 800 | 1000 | 65 | 4 | 1.7 |
| 86HS68-4004 | 1.8 | 1.3 | 4 | 0.33 | 1.6 | 35 | 1000 | 1200 | 68 | 4 | 1.7 |
| 86HS78-4004 | 1.8 | 1.5 | 4 | 0.38 | 2.5 | 35 | 1200 | 1400 | 78 | 4 | 2.3 |
| 87HS78-4204 | 1.8 | 1.9 | 4.2 | 0.45 | 4 | 45 | 1200 | 1400 | 78 | 4 | 2.3 |
| 87HS78-6008 | 1.8 | 3.0 | 6 | 0.5 | 4 | 45 | 1200 | 1400 | 78 | 8 | 2.3 |
| 86HS82-4504 | 1.8 | 1.4 | 4.5 | 0.32 | 2.8 | 45 | 1300 | 1500 | 82 | 4 | 2.5 |
| 86HS82-5608 | 1.8 | 2.0 | 5.6 | 0.35 | 3 | 50 | 1300 | 1500 | 82 | 8 | 2.5 |
| 86HS100-5004 | 1.8 | 2.5 | 5 | 0.5 | 4 | 68 | 2000 | 2100 | 100 | 4 | 3.2 |
| 86HS100-5008 | 1.8 | 2.5 | 5 | 0.5 | 4 | 65 | 2000 | 2100 | 100 | 8 | 3.2 |
| 86HS118-6004 | 1.8 | 3.6 | 6 | 0.6 | 6 | 85 | 2400 | 2700 | 118 | 4 | 3.7 |
| 86HS118-5608 | 1.8 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2400 | 2700 | 156 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 9 | 120 | 3600 | 4000 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 9 | 122 | 3600 | 4000 | 156 | 8 | 5.5 |
| Above only for representative products,products of special request can be made according to the customer request. | |||||||||||
Dimensions: Wiring Diagram:
(Unit=mm)
L1 and L2 canbe customized according to customers' requirements.
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
|
|
